Creality Sermoon P1S Specifications

General Specifications

System Requirements

[1] Accuracy is evaluated in laboratory conditions and actual results may be affected by operating environments such as vibration, temperature, and other factors.

Creality Sermoon P1S FAQ: What You Need to Know Before Buying

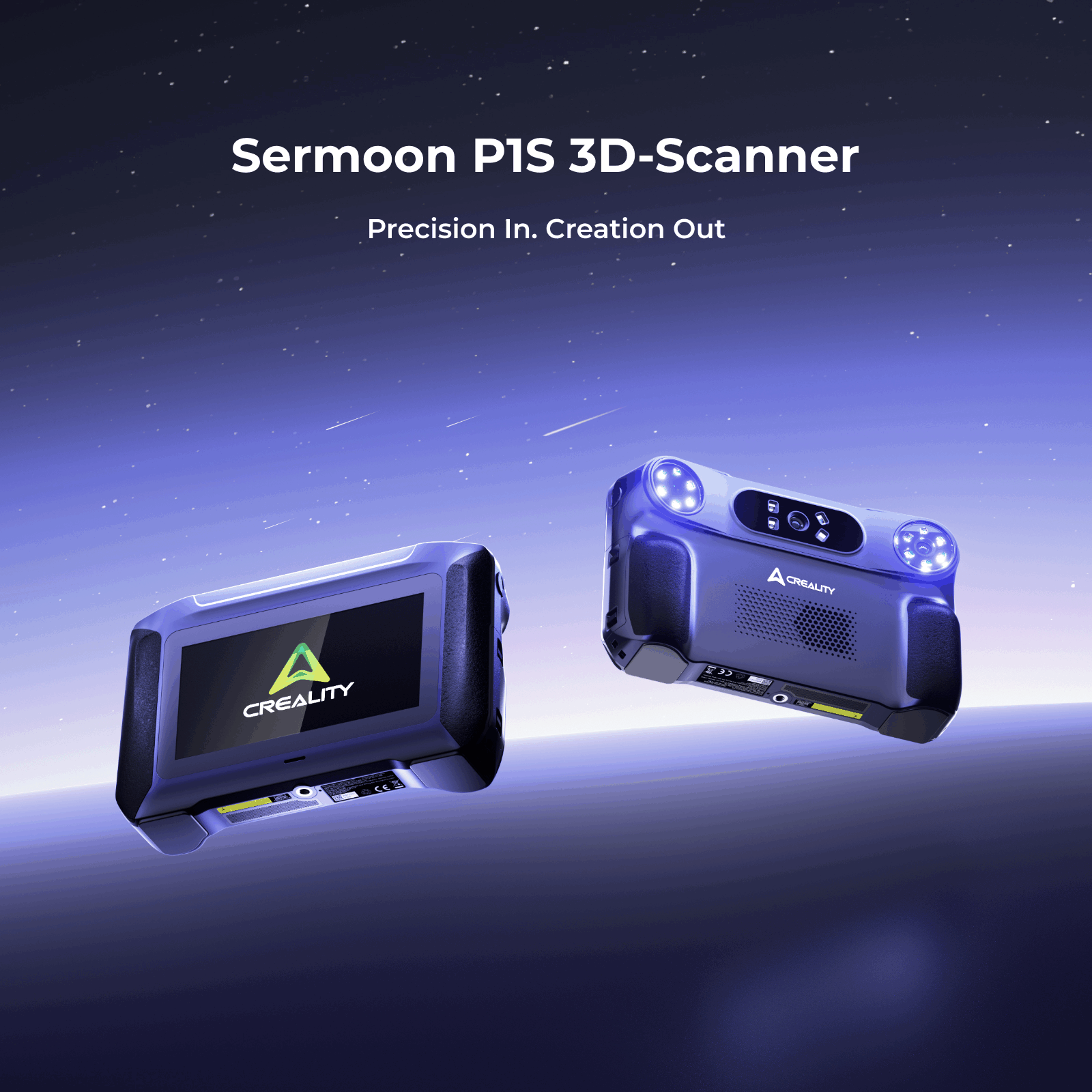

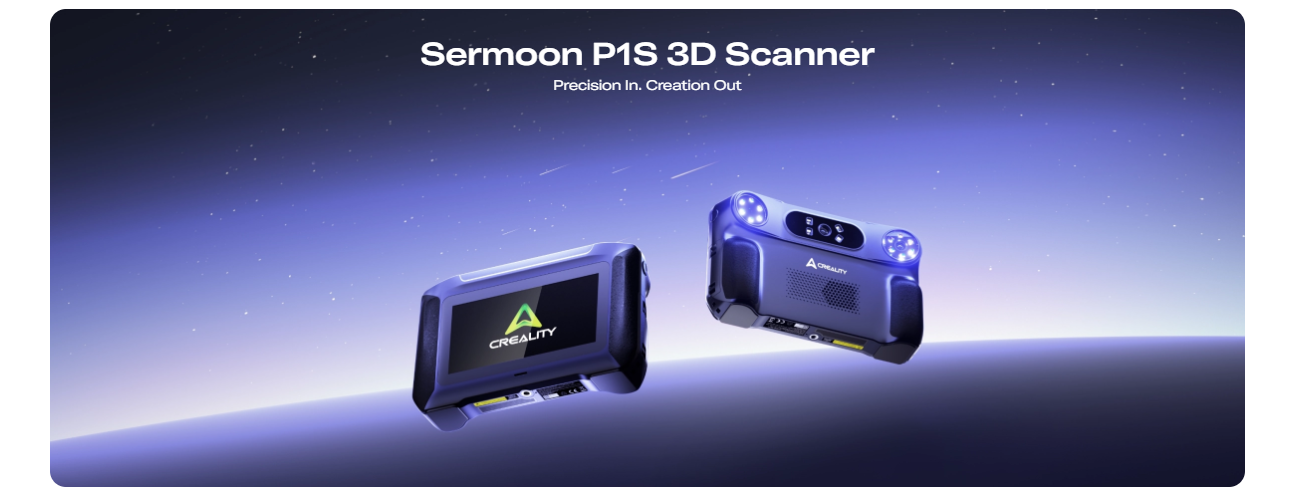

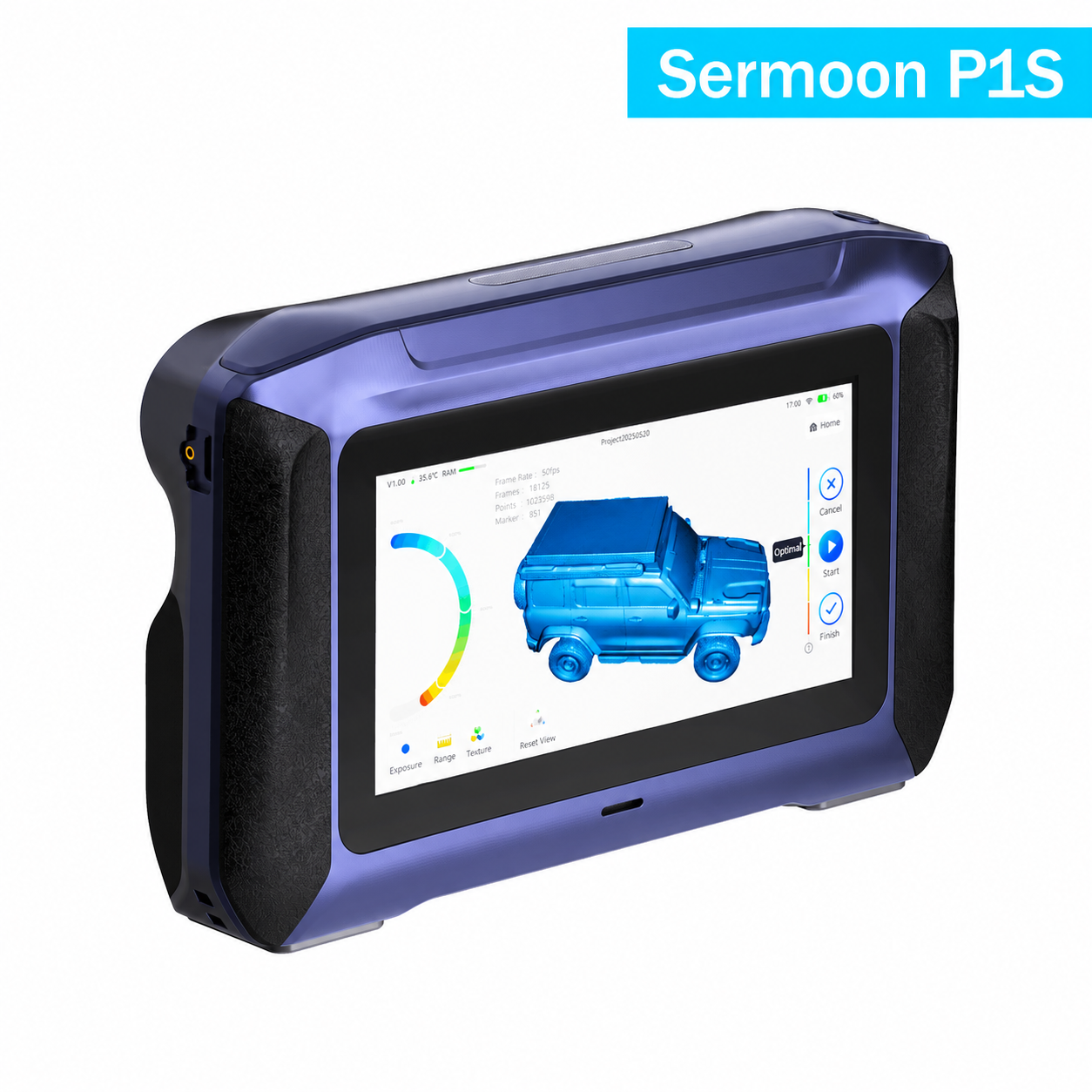

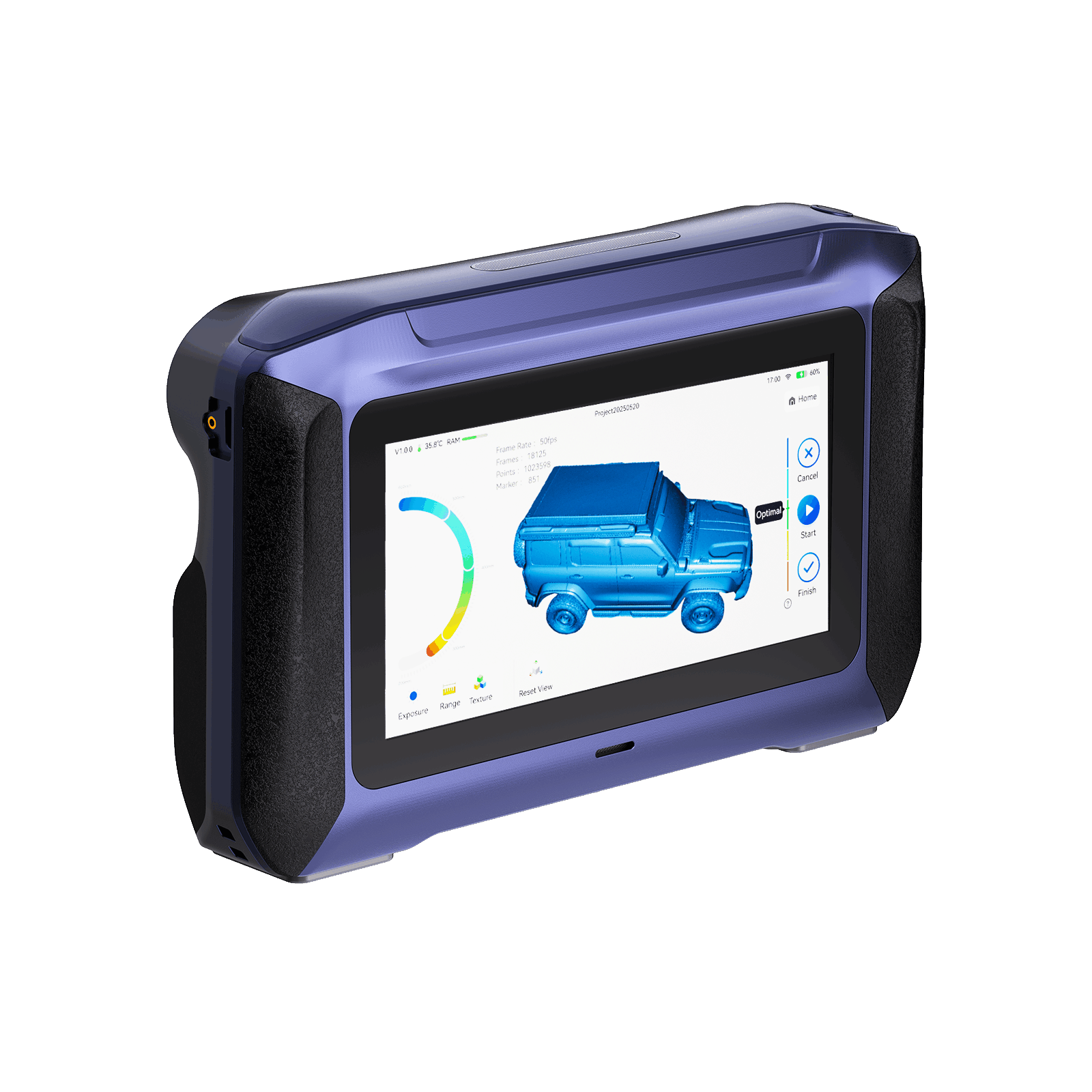

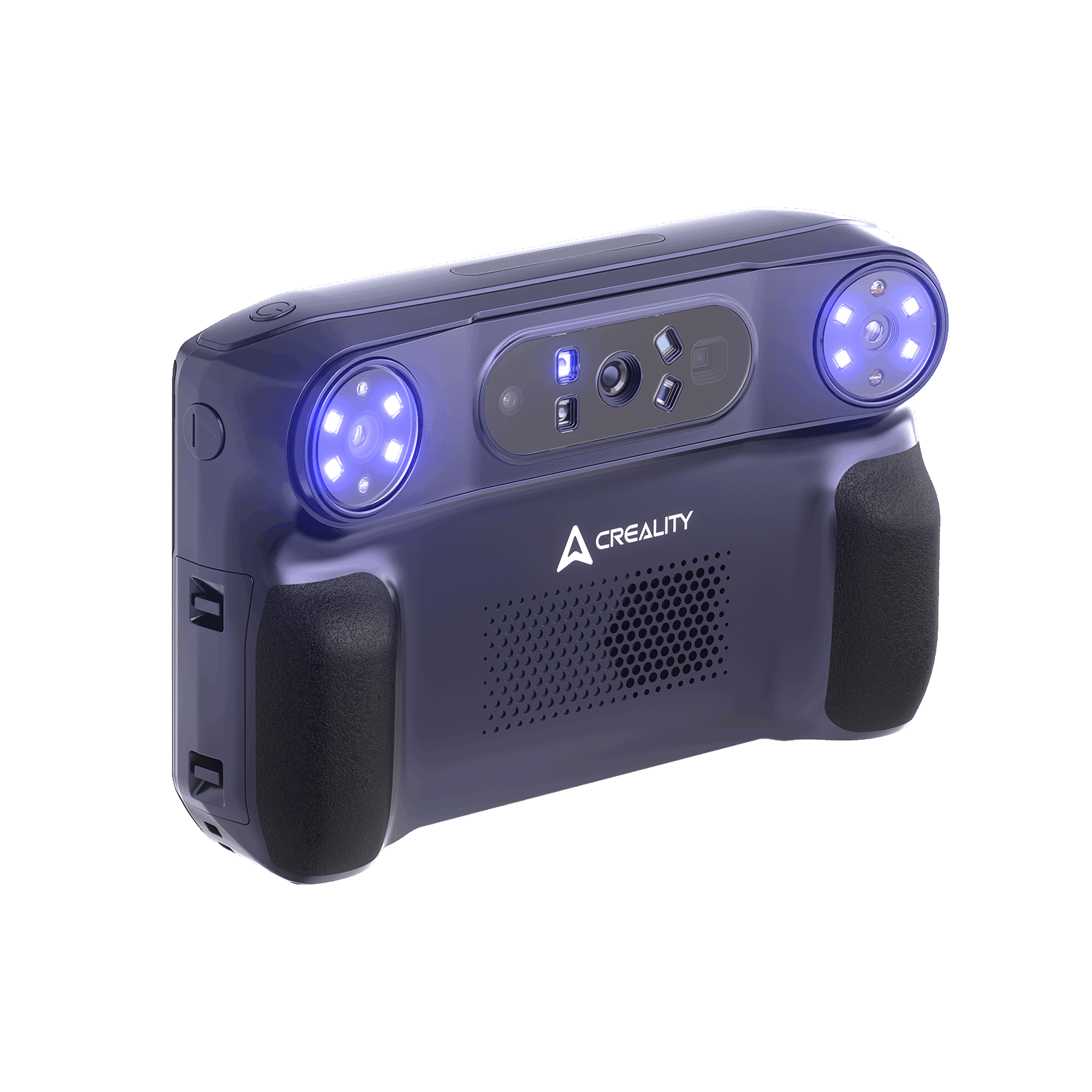

The Creality Sermoon P1S is a standalone 3D scanner designed for users who want high accuracy, flexible scanning modes, and portable operation without always relying on a PC.

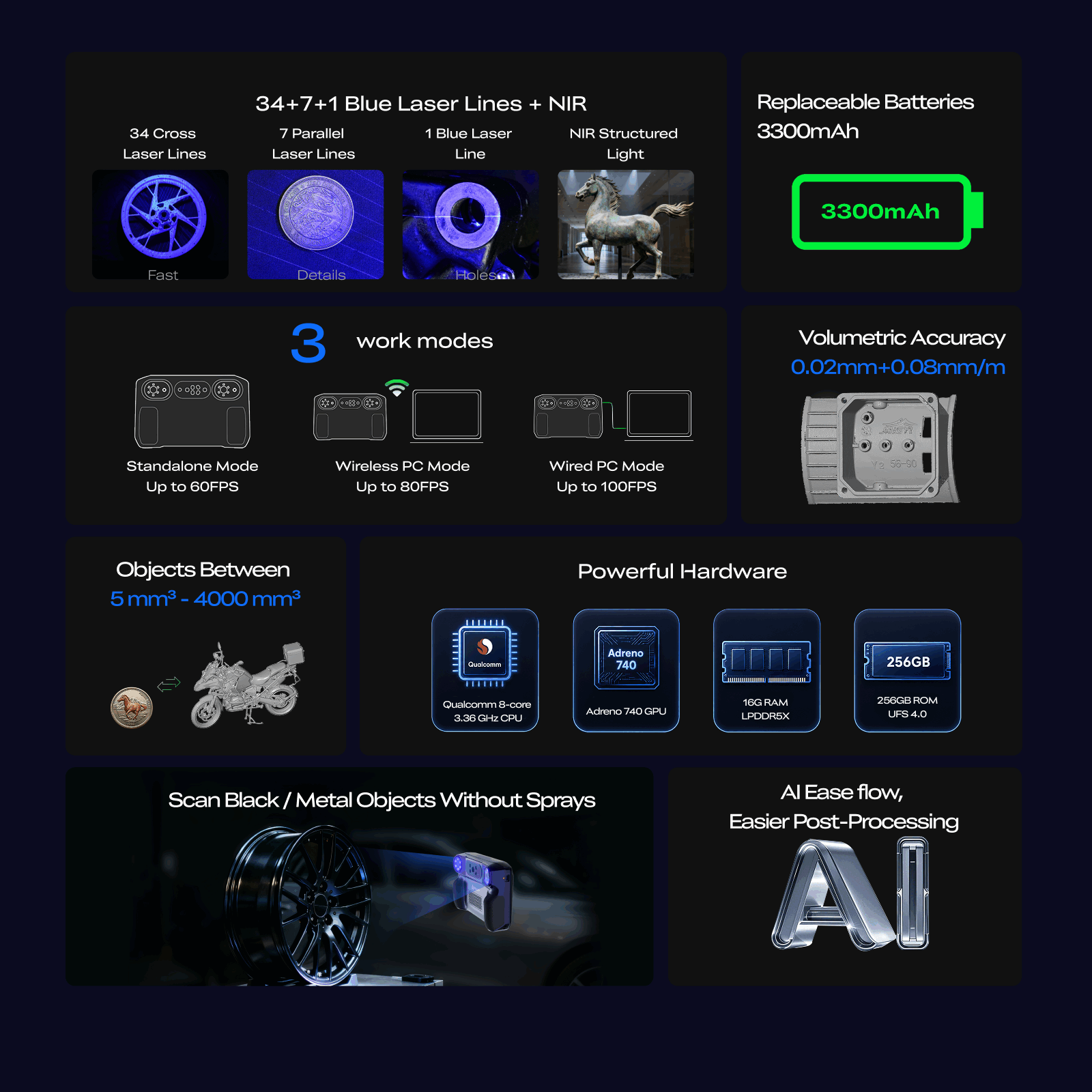

1. What are the main advantages of the Sermoon P1S?

The P1S combines blue laser scanning and NIR structured light in one device.

• Standalone scanning without a computer
• Up to 0.02 mm accuracy in blue laser mode

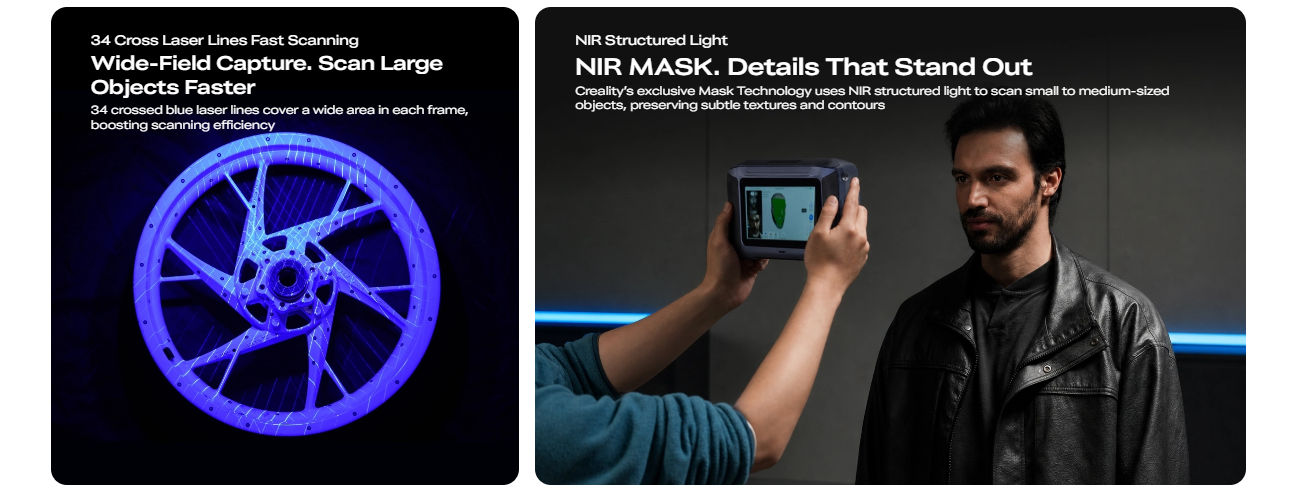

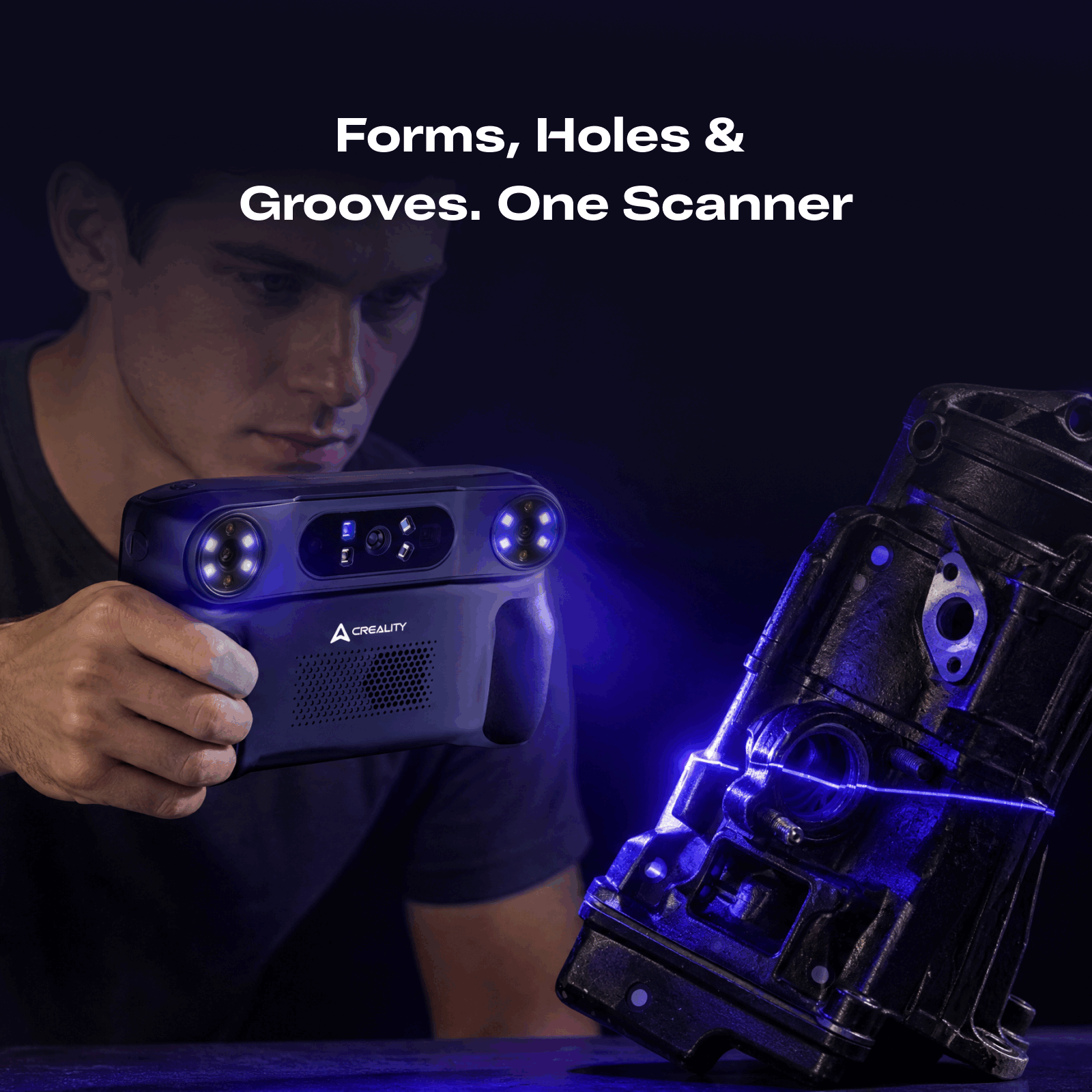

• 34 cross blue laser lines for faster scanning
• Marker-free blue laser scanning when connected to a PC via USB
• Wide-FOV laser scanning for larger objects
• Outdoor scanning up to 110,000 lux
• Wi-Fi 7 wireless PC connection

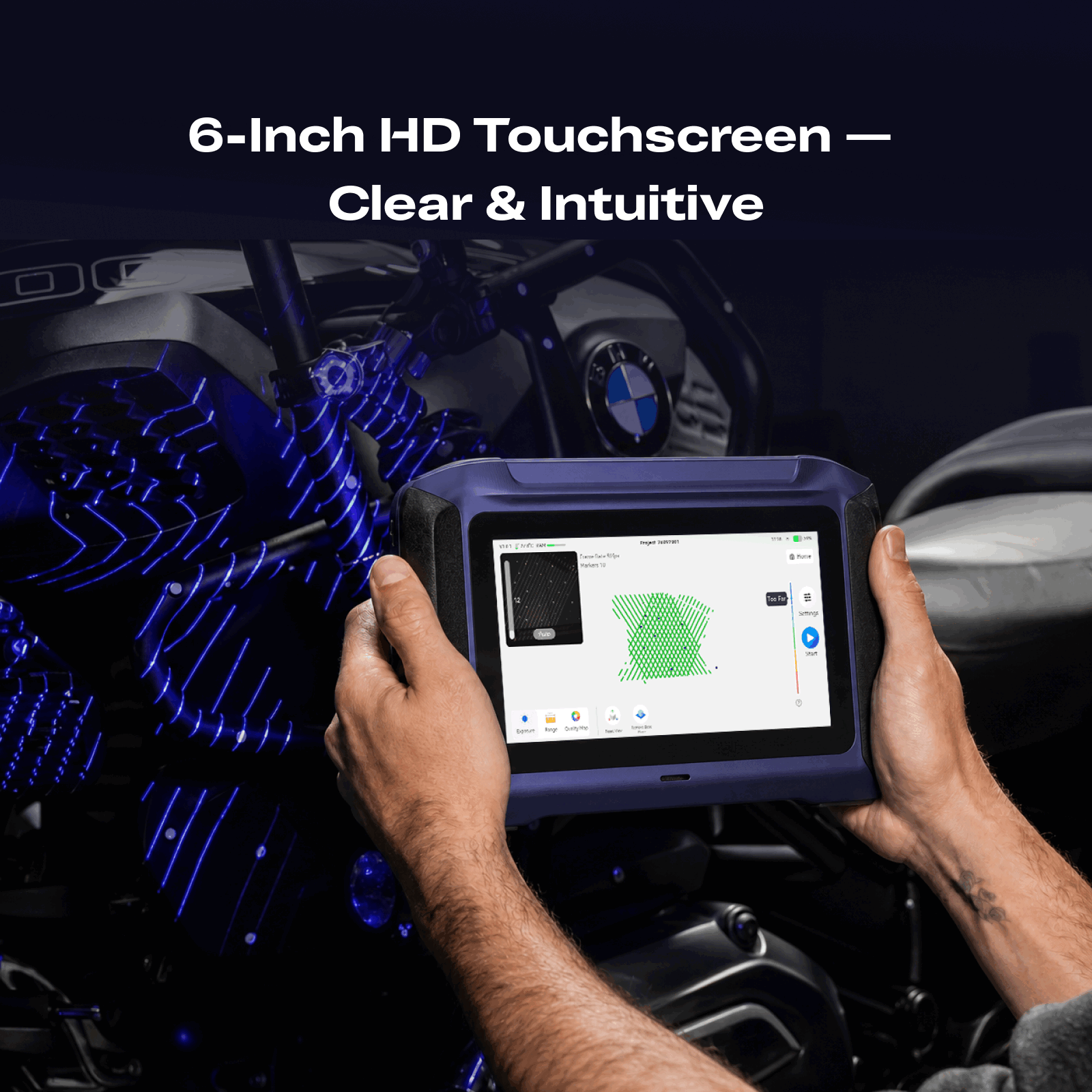

• 6-inch touchscreen
• Lightweight 807 g body

2. What is the difference between Sermoon P1 and P1S?

The Sermoon P1 focuses more on professional accuracy and uses a four-camera infrared system.

The P1S offers:

• More cross laser lines
• Wider laser scanning coverage
• Lighter weight
• Infrared filter support
• Better portability
• Strong outdoor scanning capability

3. Is the Sermoon P1S easy to use?

Yes.

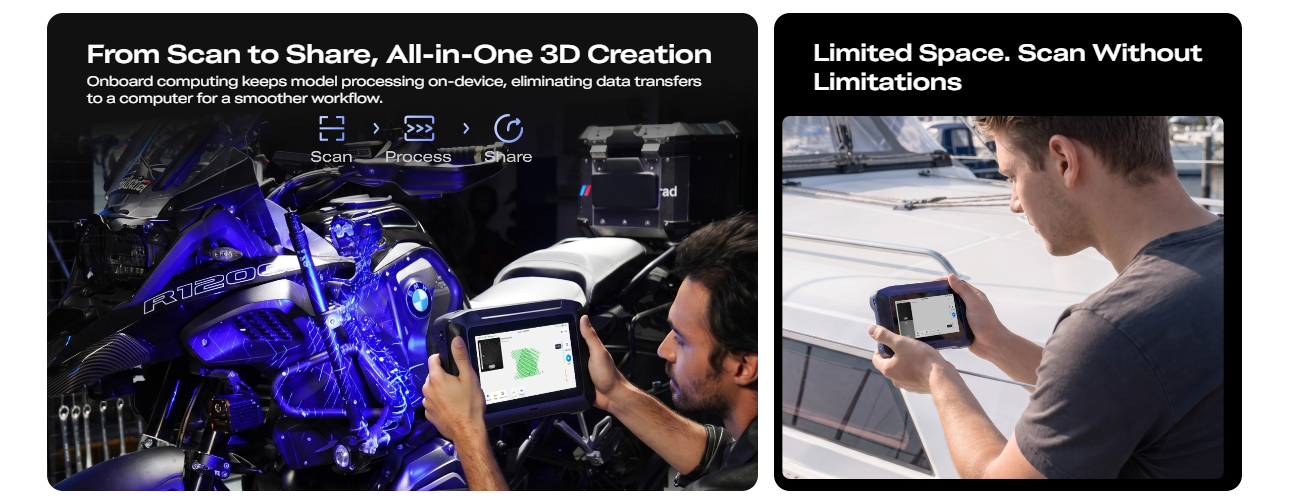

The scanner has a built-in CPU, GPU, touchscreen, battery, and operating system, so it can scan and process data without a computer.

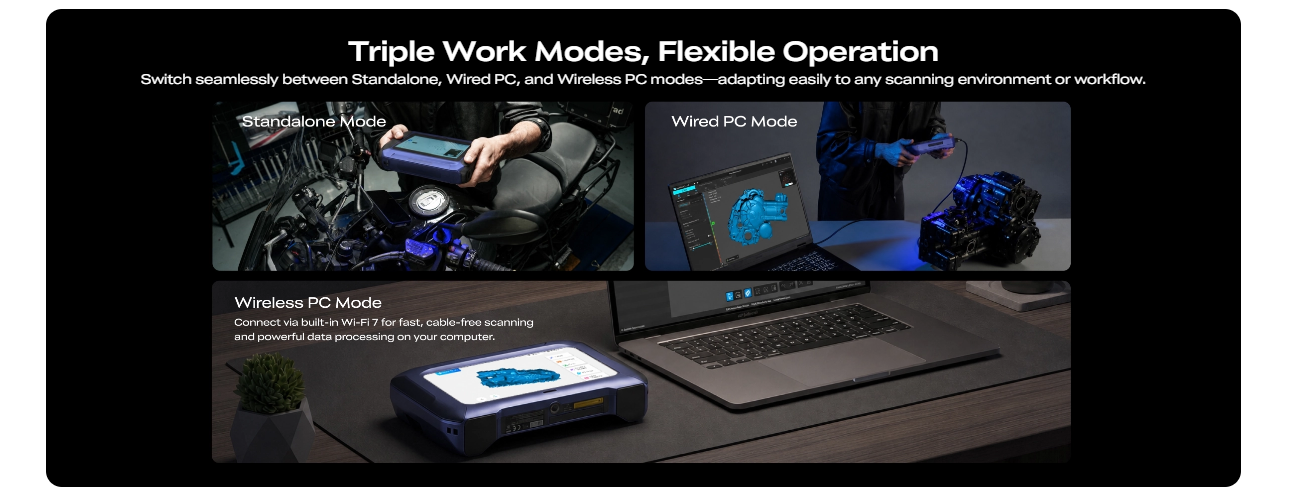

It supports three working modes:

• Standalone Mode
• Wireless PC Mode
• Wired PC Mode

4. What can the Sermoon P1S be used for?

Typical applications include:

• Reverse engineering
• Automotive modification
• 3D printing
• Art and collectibles
• Human body scanning
• Cultural heritage digitization
• Education and research

5. How accurate is the Sermoon P1S?

Blue Laser Mode

• Accuracy: up to 0.02 mm
• Volumetric accuracy: 0.02 mm + 0.08 mm/m

NIR Mode

• Accuracy: up to 0.075 mm
• Volumetric accuracy: 0.075 mm + 0.1 mm/m

6. How fast can the Sermoon P1S scan?

7. What object sizes can it scan?

The P1S supports objects from approximately:

5 × 5 × 5 mm to 4000 × 4000 × 4000 mm

This makes it suitable for both small parts and large objects.

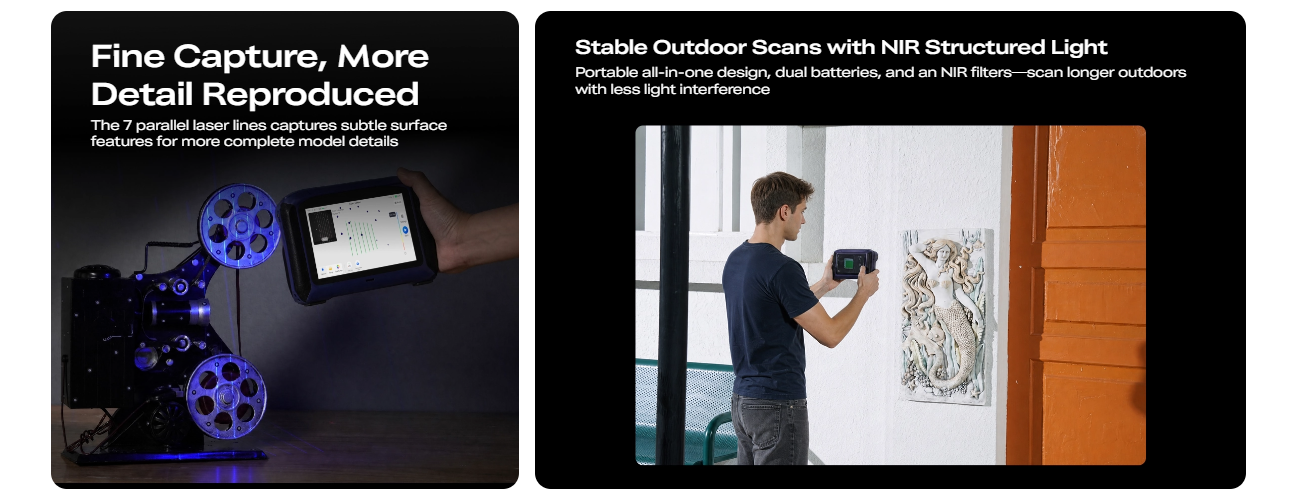

8. Can the Sermoon P1S scan outdoors?

Yes.

• Blue laser: up to 110,000 lux
• NIR with filter: up to 80,000 lux
• NIR without filter: up to 50,000 lux

9. Can it scan dark, reflective, or transparent objects?

Blue laser mode works well on dark and low-reflectivity surfaces.

For highly reflective objects, scanning spray may improve results.

Transparent or semi-transparent objects generally require scanning spray.

10. Does it support marker-free scanning?

Yes, but only when the scanner is connected to a PC through USB.

Standalone blue laser scanning still requires markers in marker-based mode.

11. Can the P1S work without Wi-Fi?

Yes.

An internet connection is not required for normal scanning.

Internet access is mainly needed for software or firmware updates.

12. What file formats can it export?

Supported formats include:

• STL
• OBJ
• PLY
• 3MF
• ASC

STL files can be imported into slicing software for 3D printing.

13. How long does the battery last?

The P1S uses a 3300mAh battery and includes a backup battery.

A single battery can provide up to around 2 hours of use.

14. What PC specifications are recommended?

Windows

• Windows 10/11 64-bit
• Intel i7 13th Gen or above
• NVIDIA RTX 4060 or above
• 32GB RAM or more

macOS

• macOS 14 or above
• Apple M3 or above
• 32GB RAM or more

15. Can the Sermoon P1S process scans without a PC?

Yes.

The scanner supports on-device functions such as:

• Fusion
• Editing
• Alignment
• Mesh generation
• Hole filling
• Color mapping

16. Can Sermoon P1S scans be used for 3D printing?

Yes.

You can export an STL model and import it directly into compatible slicing software.
